Marine
Our marine range of cylinders covers the whole spectrum from rams with specialist materials for fully exposed marine environments to cost effective models for protected use. Victor Hydraulics has even produced hydraulic cylinders for operation 150m below sea level for sampling equipment.
Victor Hydraulic Cylinders has specialist experience in working with stainless steel for cylinders that are suitable for full exposure to marine conditions. We also supply other specialist marine materials depending on your requirements.

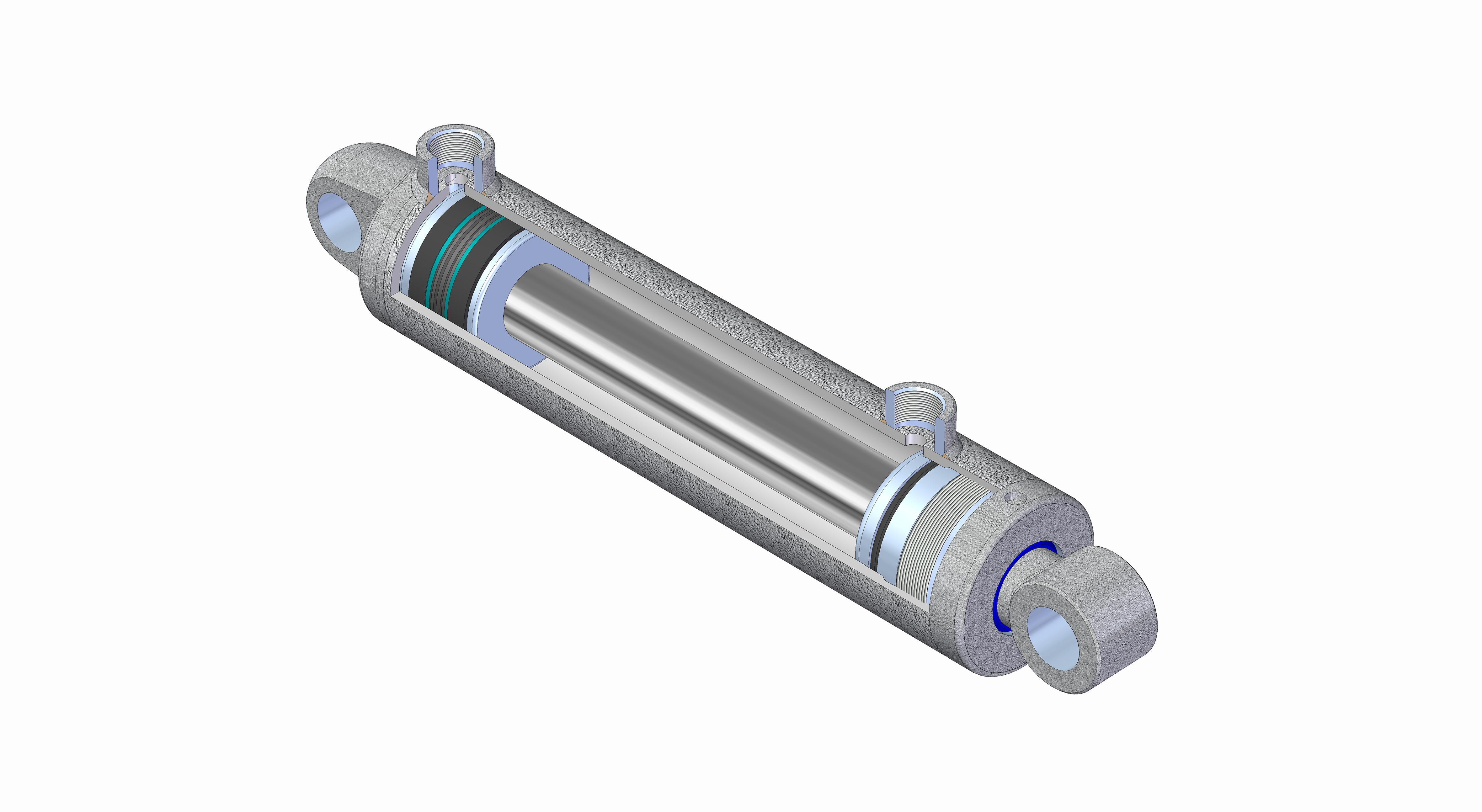

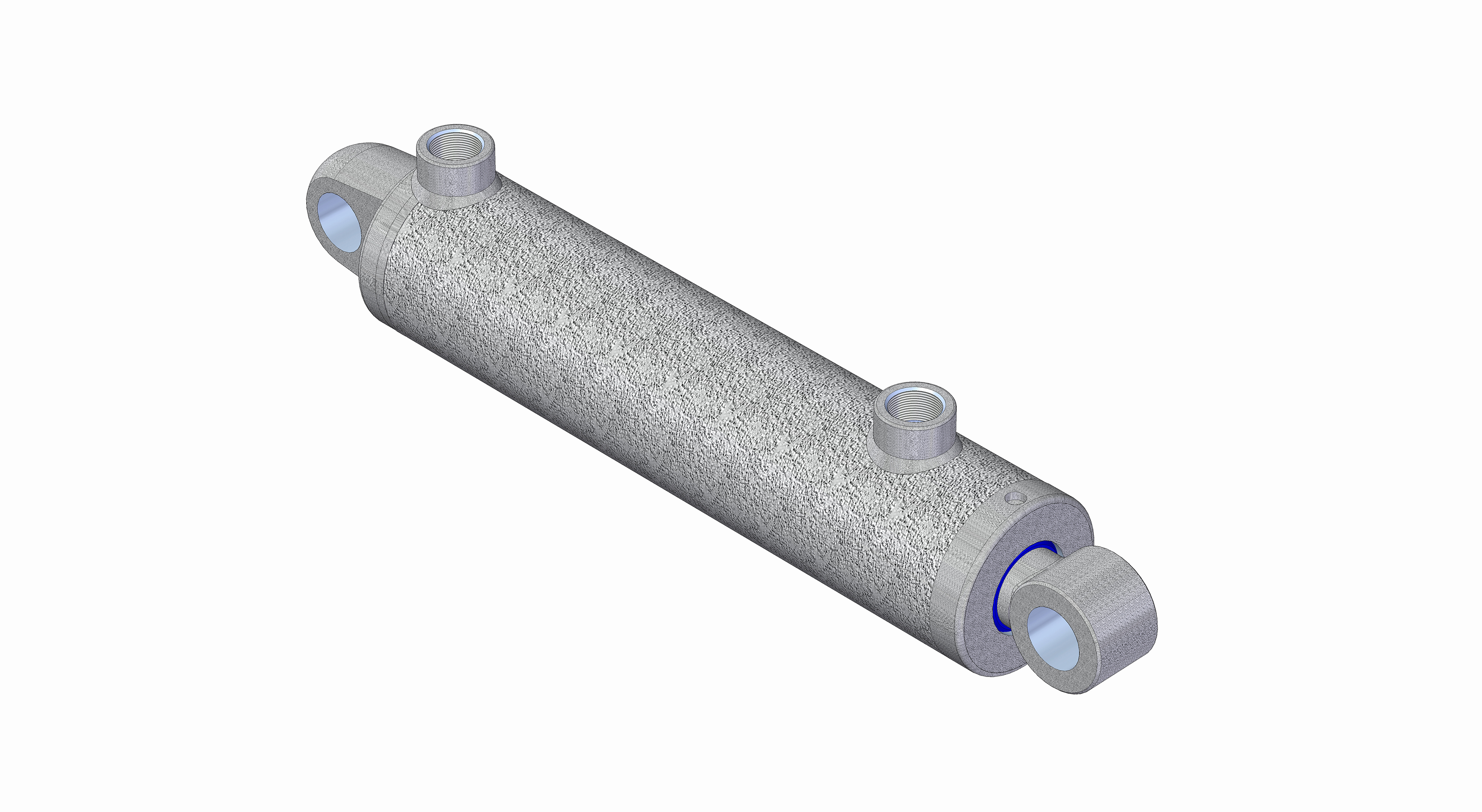

For a more cost effective solution in less exposed areas of seagoing vessels, we offer our compact marine cylinders.
For clients who need position feedback of the cylinders we also offer embedded linear transducers and other integrated controls – please refer to our technical page.
- Product Overview
- Specifications
• 2205 stainless steel shaft end and shaft eye
• Stainless steel head (up to 3.0” bores)
• Exterior sand blasted and arc zinc or aluminium sprayed
• Plated steel head (3.5” bores and over)
• Replaceable PTFE or glass reinforced nylon bearing rings
• High tensile precision torqued cap screw piston fixing to up to 3.5” bore
• Blind threaded piston locked with nylon ring (3.5” bores and over)
More info:
• Threaded head design
• Compact closed centre dimensions
• Precision manufactured to extreme standards of dimensional accuracy
• Rapidly manufactured from stock components to your dimensional and fitting requirements
• Rated to 210 bar (3000 psi) continuous operating pressure (350 bar / 5000 psi intermittent)
• All seals rated to 400 bar (6000 psi)
• Absolutely concentric construction
• 2205 stainless shaft eye
• Replaceable bearing rings
• Stainless steel threaded head (plated steel for 3.5” bores and over)
• Precision bore tube for accuracy, oil retention and extended life seal
• Sand blasted and arc spared zinc or aluminium
• 2205 centreless ground stainless steel shaft
• Five piece piston seal with acetal wear rings
• Threaded piston connection
• “BSP” ports (UN-O ring available)
