Standard Cylinders

Smaller Bores:
• Threaded head design – hard wearing cast iron or steel with bearing rings, depending on the bore / shaft configuration^†
• High tensile precision torqued cap screw piston fixing to up to 3.5” bore
• Blind threaded piston also available in 3.5” bore

3.5” and Larger Bores:
• Threaded steel head
• Blind threaded piston locked with nylon ring
• Replaceable heavy duty glass reinforced bearing rings
• 10”, 12” and larger bore cylinders also available on request.

More info:
• Threaded head design for smaller bores
• Threaded head and piston design for 3.5” and larger bores.
• Common sizes ex-stock
• Rapidly manufactured to your dimensional and fitting requirements
• Compact closed centre dimensions
• Precision manufactured to extreme standards of dimensional accuracy
• Rated to 210 bar (3000 psi) continuous operating pressure (350 bar / 5000 psi intermittent)
• All seals rated to 400 bar (6000 psi)
• Absolutely concentric construction
• “BSP” ports (UN-O ring available)
• Hard chromed shaft
• Precision bore tube for accuracy, oil retention and extended life seal
• Five piece piston seal with acetal wear rings
• Alternative seal materials available

† Steel head with bearing rings.

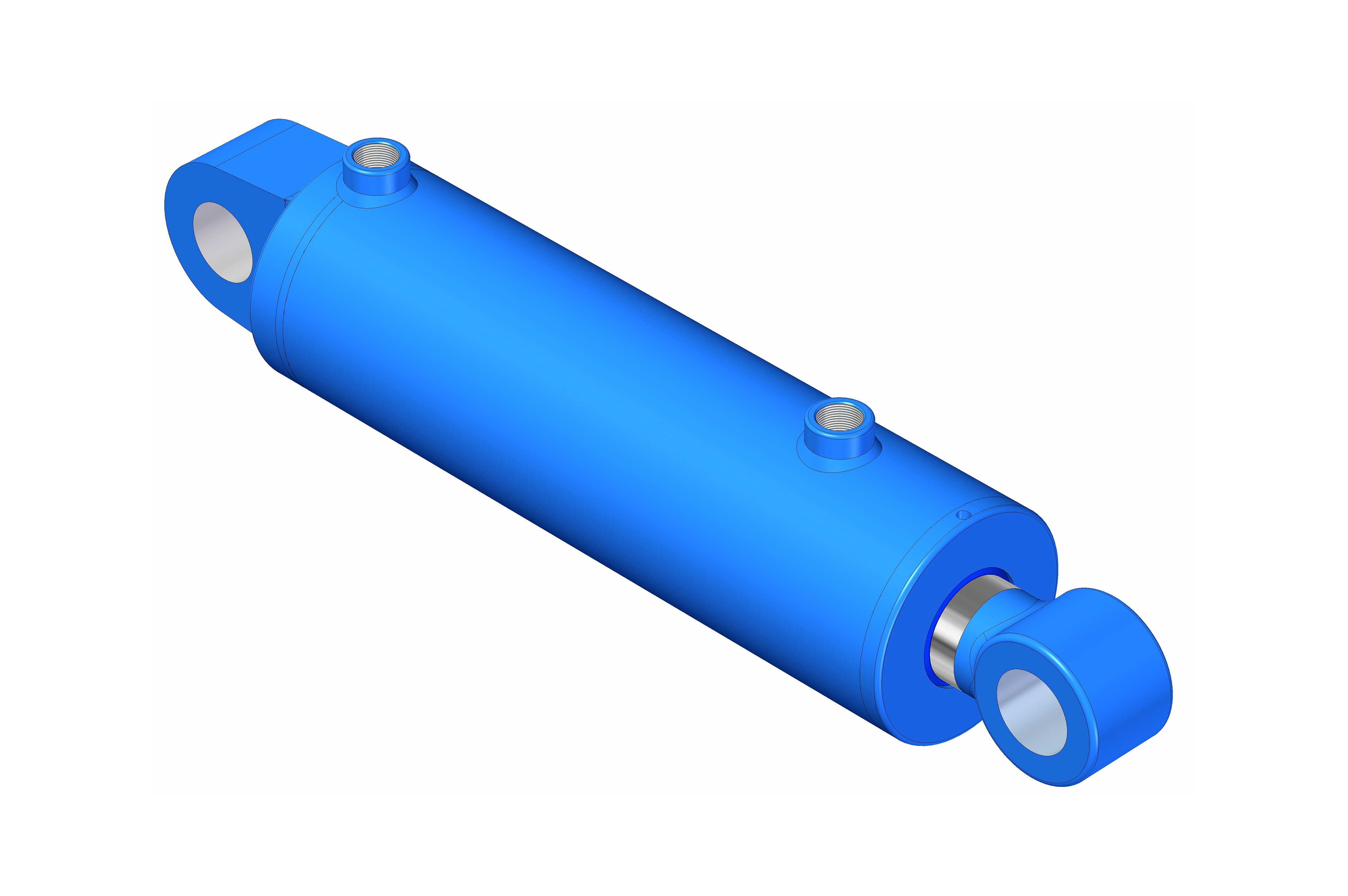

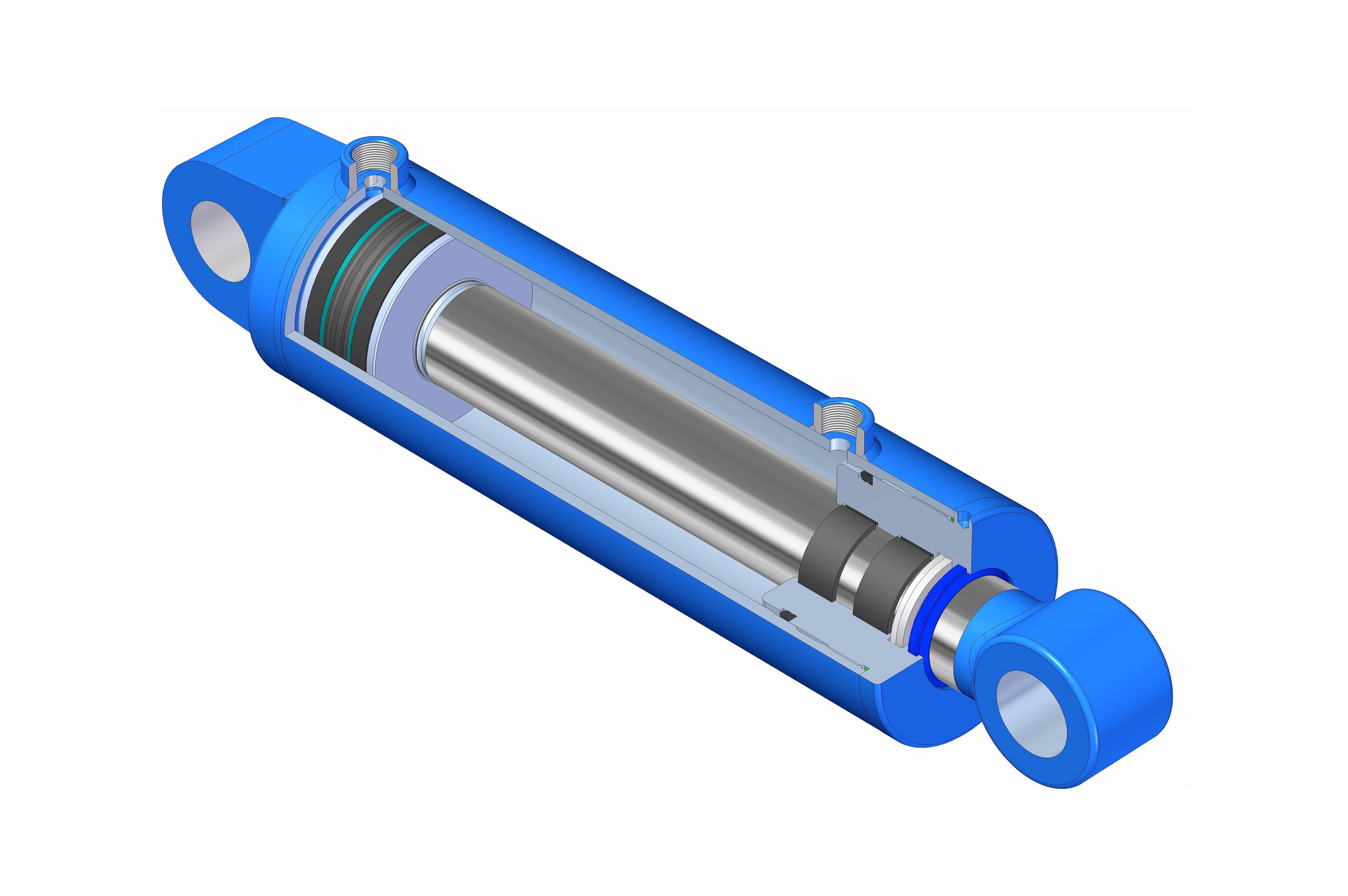

• Threaded head design – hard wearing cast iron or steel with bearing rings, depending on the bore / shaft configuration^†
• High tensile precision torqued cap screw piston fixing to up to 3.5” bore
• Blind threaded piston locked with nylon ring from 3.5” bore

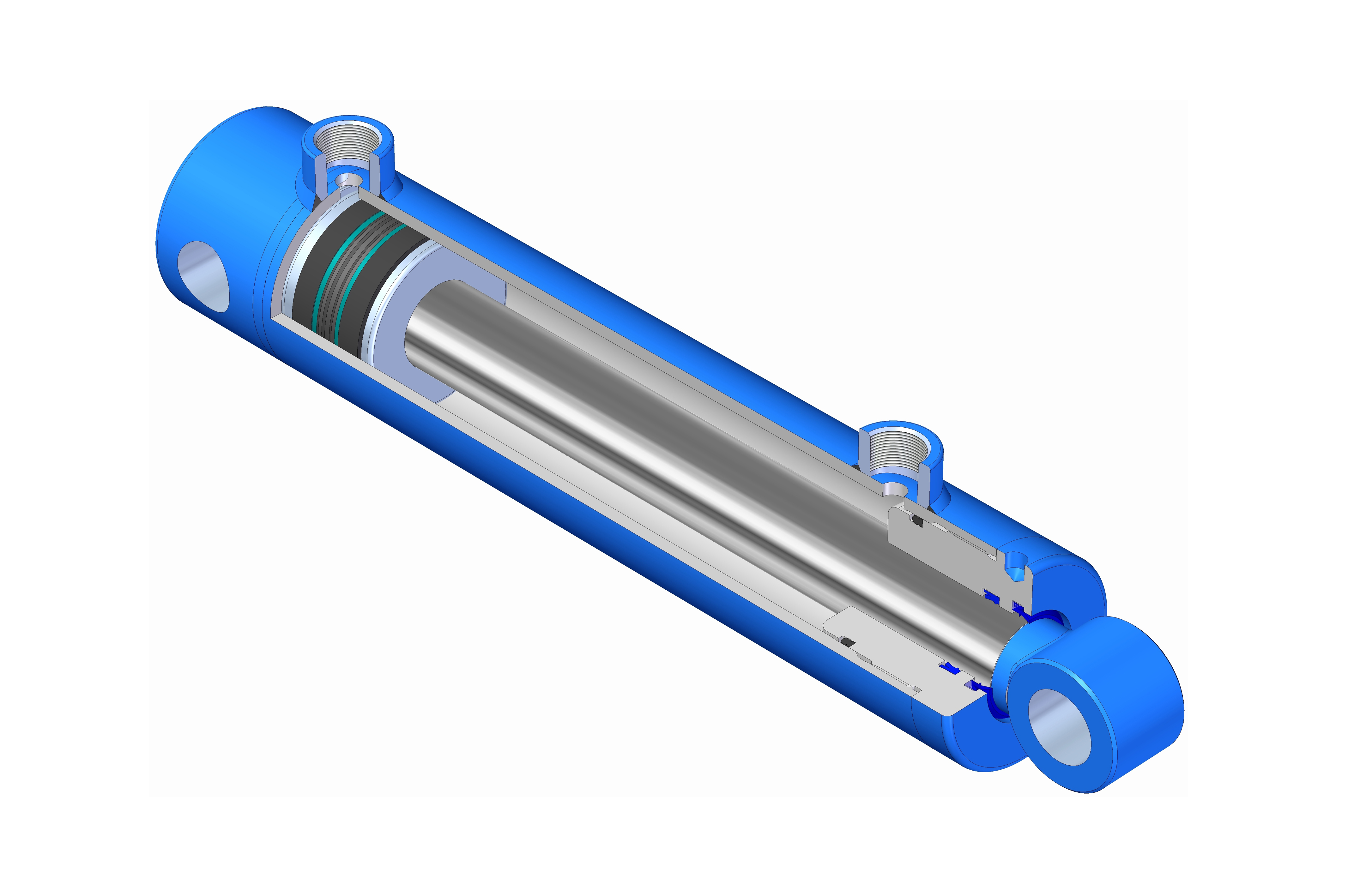

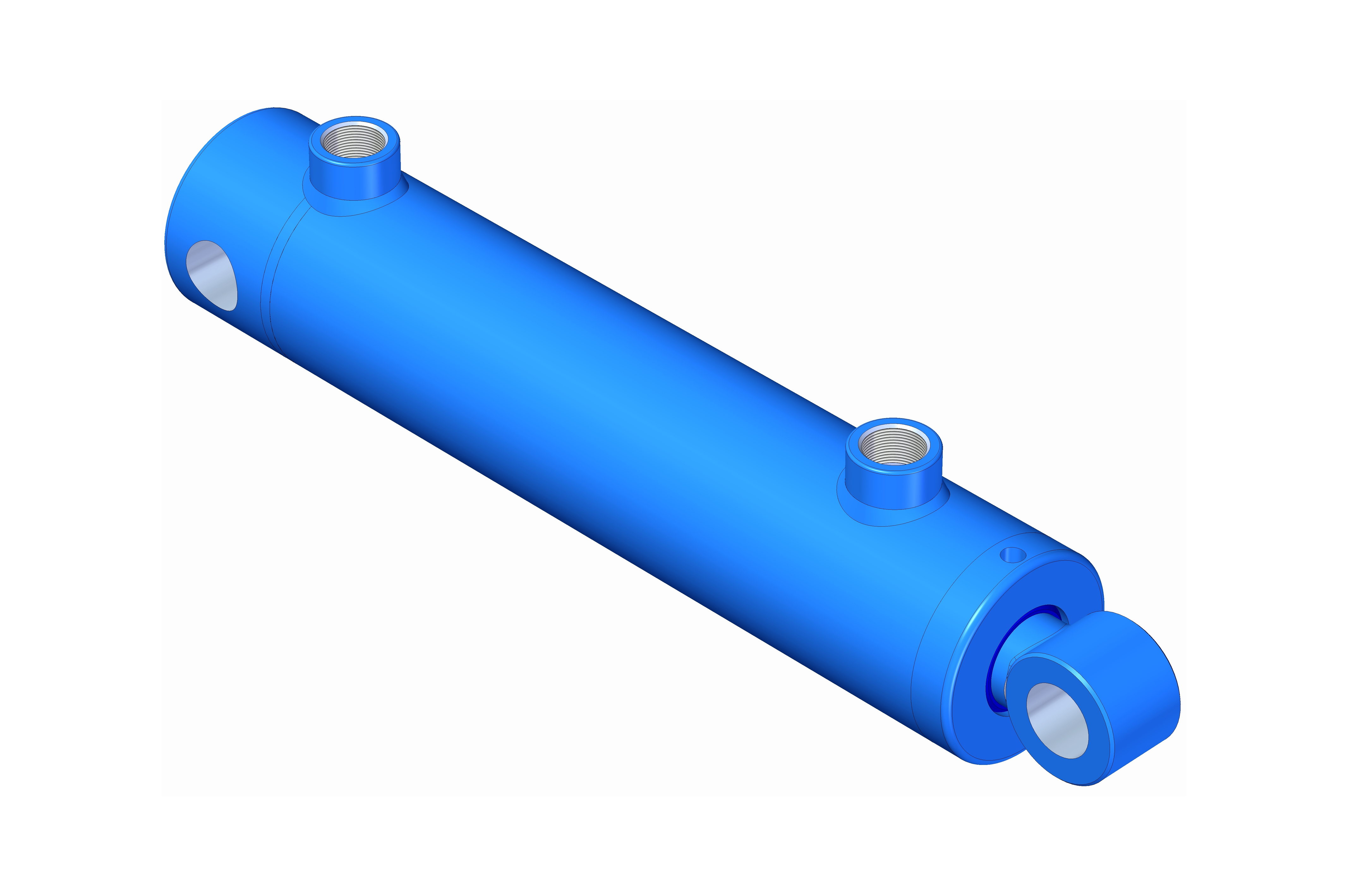

• Compact SUPER S styles are available for larger bore cylinders.

More info:
• Threaded head and piston design
• Common sizes ex-stock
• Fits where space is a real problem
• Rapidly manufactured to your dimensional and fitting requirements
• Super compact closed centre dimensions
• Precision manufactured to extreme standards of dimensional accuracy
• Rated to 210 bar (3000 psi) continuous operating pressure (350 bar / 5000 psi intermittent)
• All seals rated to 400 bar (6000 psi)
• Absolutely concentric construction
• “BSP” ports (UN-O ring available)
• Hard chromed shaft
• Precision bore tube for accuracy, oil retention and extended life seal
• Five piece piston seal with acetal wear rings
• Slug base.

† Steel head with bearing rings.

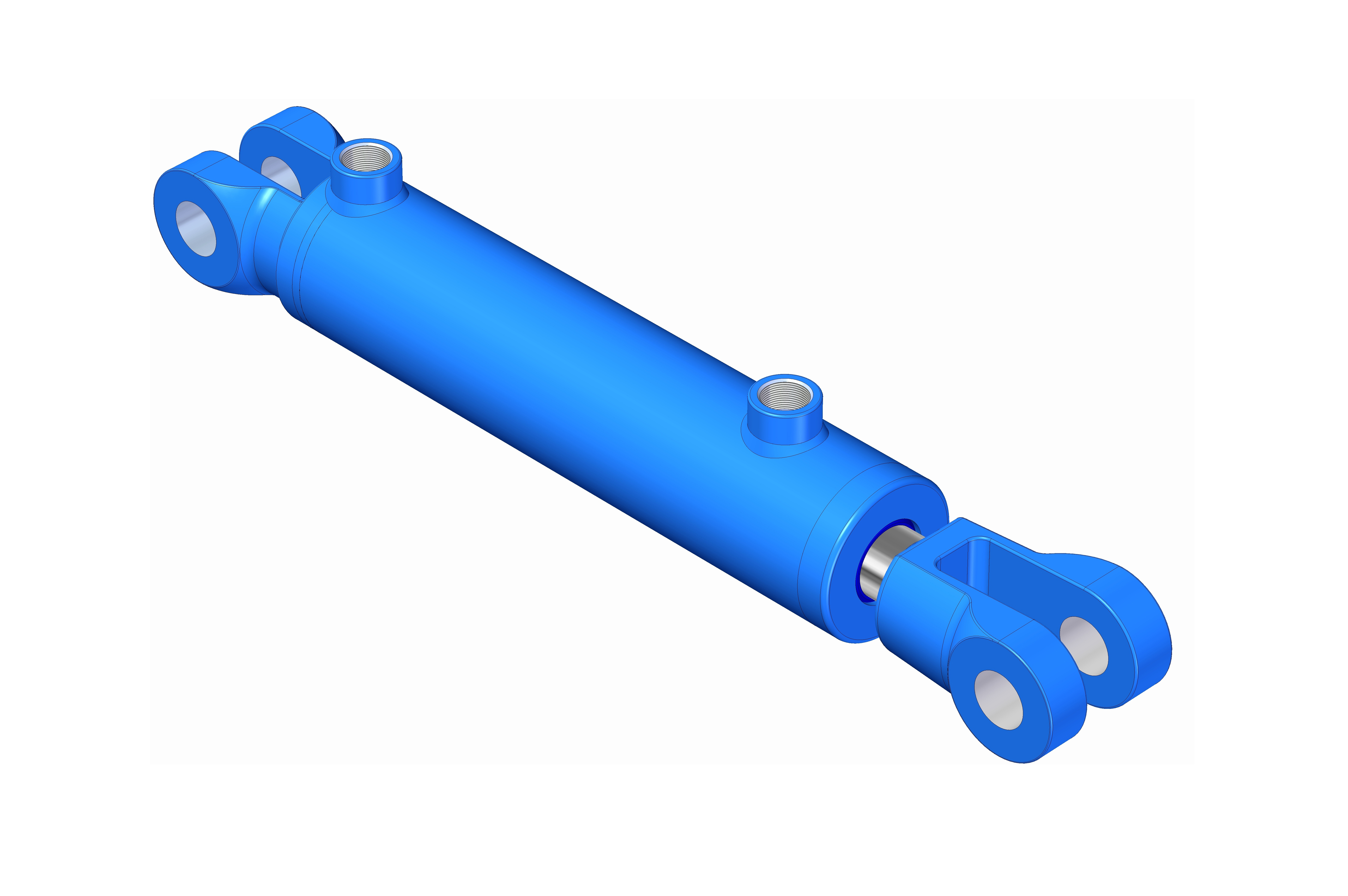

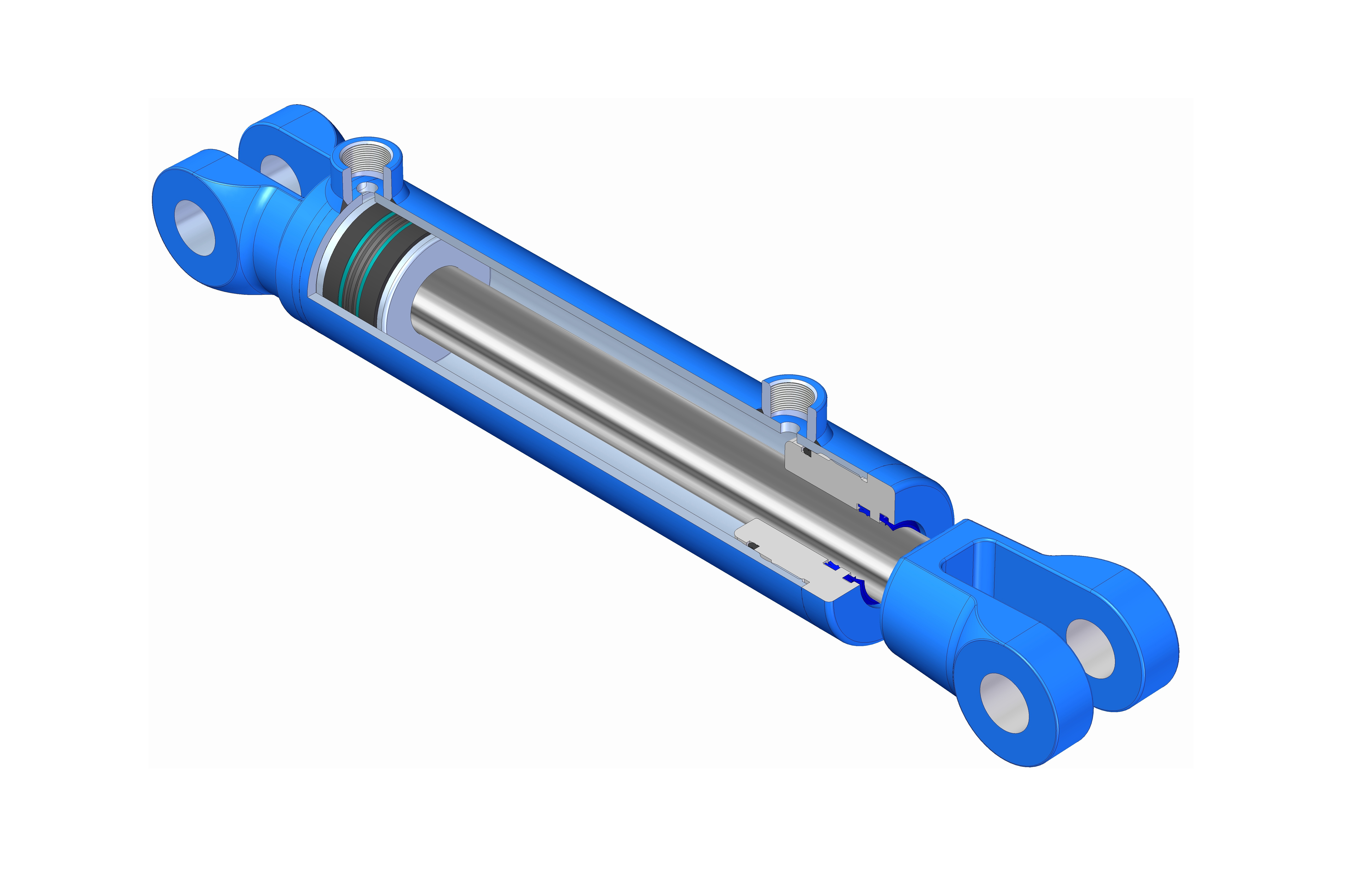

• Built to international S.A.E. J716 / ISO 2057 standards – provides full in the field interchangeability
• Threaded head design – hard wearing cast iron or steel with bearing rings, depending on the bore / shaft configuration^†
• High tensile precision torqued cap screw piston fixing to up to 3.5” bore
• Blind threaded piston for 3.5” and 4.0” bores.

More info:
• Threaded head design
• Compact S.A.E. sizes ex-stock
• Rapidly manufactured to your dimensional and fitting requirements
• Precision manufactured to extreme standards of dimensional accuracy
• Rated to 210 bar (3000 psi) continuous operating pressure (350 bar / 5000 psi intermittent)
• All seals rated to 400 bar (6000 psi)
• Absolutely concentric construction
• “BSP” ports (UN-O ring available)
• 1” pins and clips (optional extra)
• Hard chromed shaft
• Precision bore tube for accuracy, oil retention and extended life seal
• Five piece piston seal with acetal wear rings
• Cap screwed piston connection.

† Steel head with bearing rings.

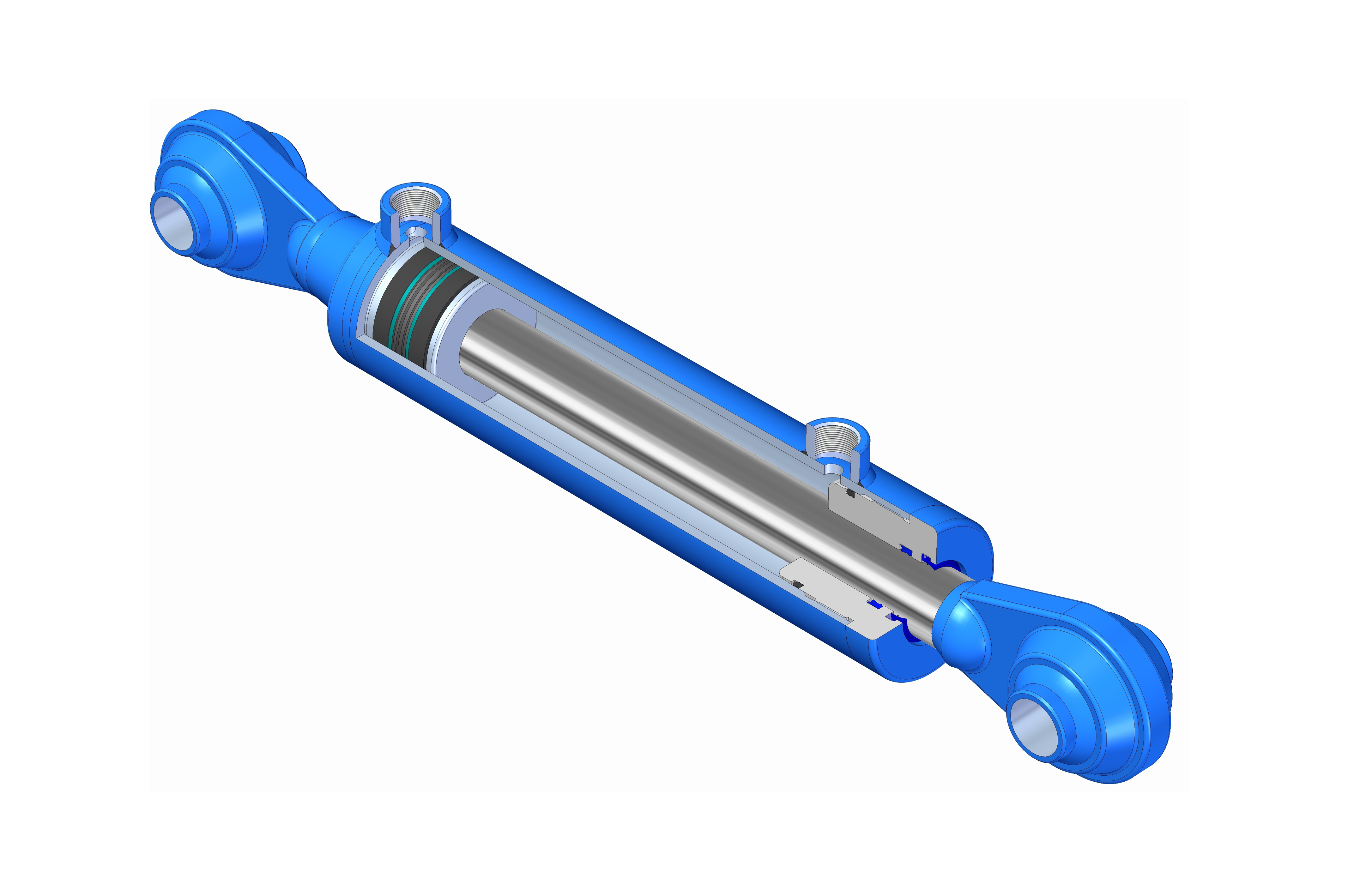

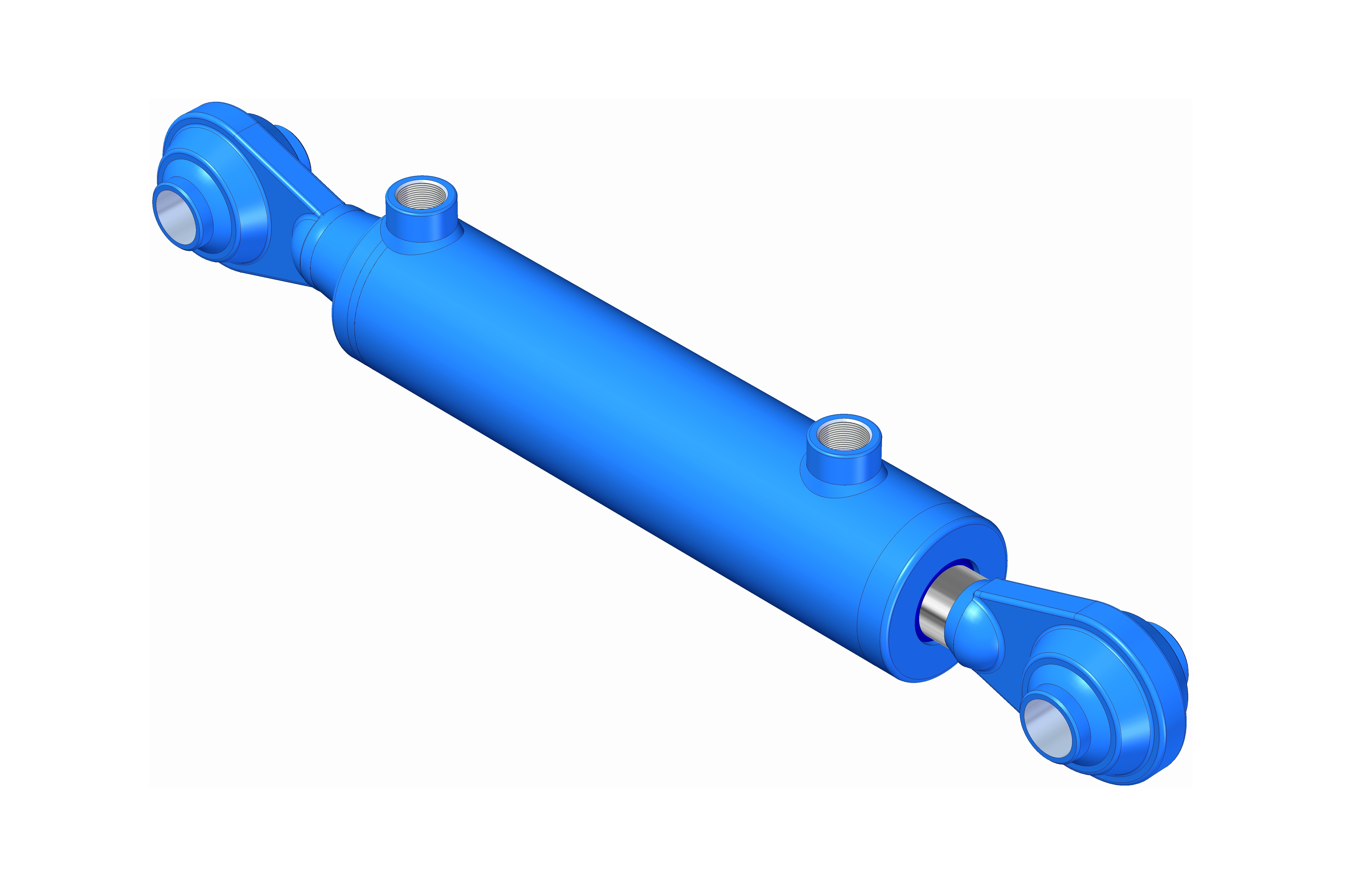

• Extended base for increased clearance
• Common sizes ex-stock
• High tensile precision torqued cap screw piston fixing.

More info:
• Rated to 210 bar (3000 psi) continuous operating pressure (350 bar / 5000 psi intermittent)
• All seals rated to 400 bar (6000 psi)
• CAT 2 or 3 ball end
• Precision bore tube for accuracy, oil retention and extended life seal
• Hard chromed shaft
• Five piece piston seal with acetal wear rings
• Cap screwed piston connection
• “BSP” ports (UN-O ring available).

• 2205 stainless steel shaft end and shaft eye
• Stainless steel head (up to 3.0” bores)
• Exterior sand blasted and arc zinc or aluminium sprayed
• Plated steel head (3.5” bores and over)
• Replaceable PTFE or glass reinforced nylon bearing rings
• High tensile precision torqued cap screw piston fixing to up to 3.5” bore
• Blind threaded piston locked with nylon ring (3.5” bores and over)

More info:
• Threaded head design
• Compact closed centre dimensions
• Precision manufactured to extreme standards of dimensional accuracy
• Rapidly manufactured from stock components to your dimensional and fitting requirements
• Rated to 210 bar (3000 psi) continuous operating pressure (350 bar / 5000 psi intermittent)
• All seals rated to 400 bar (6000 psi)
• Absolutely concentric construction
• 2205 stainless shaft eye
• Replaceable bearing rings
• Stainless steel threaded head (plated steel for 3.5” bores and over)
• Precision bore tube for accuracy, oil retention and extended life seal
• Sand blasted and arc spared zinc or aluminium
• 2205 centreless ground stainless steel shaft
• Five piece piston seal with acetal wear rings
• Threaded piston connection
• “BSP” ports (UN-O ring available)
